|Place of Origin:||China|
|Model Number:||E447 Triplex Mud Pump|
|Minimum Order Quantity:||1 SET|
|Price:||USD220-300 per piece|
|Packaging Details:||Carton, Plywood Case|
|Delivery Time:||10-15 days|
|Payment Terms:||T/T, West Union|
|Supply Ability:||Fast Delivery, Plenty in Stock|
|Material:||Forging Alloy Steel Outer Shell W/High Chrome Iron Inner Sleeve||OEM:||100% Interchangeable With Polular Pump|
|Performance:||Long Service Life||Advantage:||Competitive Price|
BETTER dedicates itself to serve drilling & mining fluid control system, which specializes in spare parts of centrifugal slurry pump, mud pumps used in oil, gas & water well drilling, work over, and HDD industry. All our products have strict quality control which guarantee the security and excellence performance under API Spec 7K standard. This brochure mainly introduces our mud pump expendables products
These items include various styles of valves, seats, pistons, liners, piston rods, and extension rods, as well as fluid module accessories, which are equivalent and 100% interchangeable with those popular OEM mud pump parts, including Brewster, Bomco, Emsco, Drillmec, Gardner-Denver, Gaso, HongHua, Ideco, Lewco, Massarenti, Mission, National, Oilwell, OPI or Wirth, Wheatley, Wilson, Weatherford, TSC, MUDKING, Southwest, SPD.
BETTER offers a full range of mud pump pistons for both triplex and duplex pumps. They are:

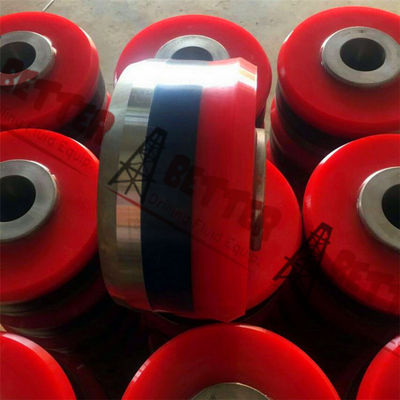

BONDED URETHANE PISTONS Constructed of urethane, bonded to a solid metal hub. Double durometer urethane is designed to provide optimum performance in oil base or water base mud and high drilling pressures. Features
REPLACEABLE RUBBER PISTON
Composed of 40Cr forged piston hub, nitrile rubber, plate and snap ring. This piston's maximum pressure capability is due to this oil, water and heat resistant material. These pistons are fully interchangeable with most other manufacturers, which are one of the oldest and most widely used piston styles worldwide.
The piston rubber is made from specially formulated compounds, the fabric-backed heel provides additional stiffness which acts as a reservoir to hold and distribute liner-wash fluid to the piston-seal area. Available sizes are from 3″ through 8"and series are A, B, K and L.
PISTON RUBBER KIT: Composed with rubber, snap ring, and plate.
Duplex pistons are used for duplex mud pump.
The Blue Lightning'" is capable of operating in fluid
temperatures up to 220°F. The fluids can be water, oil, or
synthetic based fluids.
Blue Lightning'" adds value through consistent run times,
reduced cost per operating hour, and reduced maintenance
|TYPESIZE||PISTON ASSEMBLY||PISTON REPLACEMENTRUBBERS & RUBBER KIT|
|MISSIONSUPREME||MUDKINGIMPERIAL||MK BONDEDURETHANE||GARDNERDENVER STD||SPDPREMIUM||NATIO-NAL||MISSIONSUPREME||MUDKINGIMPERIAL||GARDNER DENVER STD||NATIO-NAL|
|6"||012180394||MK-I60HB 4/15||MK-LL-600||245TBB045A 322PZL350||052048000||K-1022||015180268||MK-I60HB||TBB76028||K-1044|
