BETTER Mission Magnum pump 6x5x14 w/Mechanical Seal RH Impeller

Place of Origin China
Brand Name BETTER
Certification API 7K, 6A, 8C, ISO
Model Number Mission Magnum
Minimum Order Quantity 1 SET
Price USD 2000.00-2200.00 PER SET
Packaging Details Carton, Plywood Case
Delivery Time 7-10 days
Payment Terms T/T, West Union
Supply Ability Fast Delivery, Plenty in Stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Painting Color Can Be Customized, Red Material Hard Iron
Sealing Type Mechanical Seal Impeller 14" Open Type
Shaft Heavy Duty 2.5" Suction Size 6"
Discharge Size 5" Driven Motor Or Diesel Engine
Pressure Low Pressure Application Sewage, Sand, Slurry, Solid Control
Leave a Message
Product Description

BETTER Drilling Fluid Equip.mainly engages in manufacturing, design, selection, export series of centrifugal pumps, including sand pump, slurry pump, split casing pump, water pump, oil pump, spray pump, shearing pump, submersible pumps, etc. and a wide range of pump fluid end parts. We are devoting on offering the best solutions for pump application in the worldwide oil and gas drilling, mining, pumping project, meanwhile, supplying popular brands pump replacement parts.



BETTER Drilling Fluid Equipment offers a complete line of centrifugal sand pumps to suit for all kinds of drilling application. Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x14, 10x8x14 to 14x12x22. Bare pumps, horizontal packages, and overhead belt drive type are availabe. Explosion-proof electric motors are available up to 350HP, in 1150, 1450, 1750 RPM at 50Hz or 60Hz.



BETTER MODEL SIZE NAME SEALING TYPE IMPELLER SIZE
BT-640202123-ITXX** 3 x 2 x 13 Centrifugal Pump Mechanical Seal 13”
BT-640202222-ITXX** 4 x 3 x 13 Centrifugal Pump Mechanical Seal 13”
BT-640202321-ITXX** 5 x 4 x 14 Centrifugal Pump Mechanical Seal 14”
BT-640202529-ITXX** 6 x 5 x 11 Centrifugal Pump Mechanical Seal 11”
BT-640202628-ITXX** 6 x 5 x 14 Centrifugal Pump Mechanical Seal 14”
BT-640202826-ITXX** 8 x 6 x 11 Centrifugal Pump Mechanical Seal 11”
BT-640202925-ITXX** 8 x 6 x 14 Centrifugal Pump Mechanical Seal 14”
BT-640203121-ITXX** 10 x 8 x 14 Centrifugal Pump Mechanical Seal 14”



The BETTER BT-SB centrifugal sand pumps is manufactured from wear resistant materials, and can be used to handle abrasive cements and drilling fluids in drilling, production, well-servicing, and industrial application. The combination of wear resistant fluid end, mechanical seal and heavy duty power end provides the prolonged service life. The unified power ends in the series simplify the maintaining procedures, reduce the operation cost and spare parts stocked.



Features

*Open impeller design

*Double mechanical seals application, combining packing seal and mechanical seal

*Innovated impeller vanes create lower axial thrust for improved bearing life.

*To adopt wear resistance nodular iron

*External adjustment of impeller clearance extends pump performance life.

*Structure equiv. to Mission Magnum I, and 2500 Supreme, halco 2500, interchangeable fluid end spare parts could be provided



Common Application:

Barite, ferric oxide and mineral oil

Base drilling mud

Glass fibers

Sugar processing

Ash or coal conveyors

Cement

Mine de-watering

Lime slurry

Koalin clay

Crystalline forms



Mounting options

Horizontal electric and close coupled horizontal model, and overhead belts driven type.

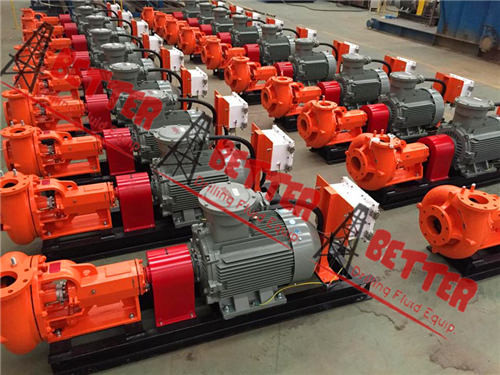

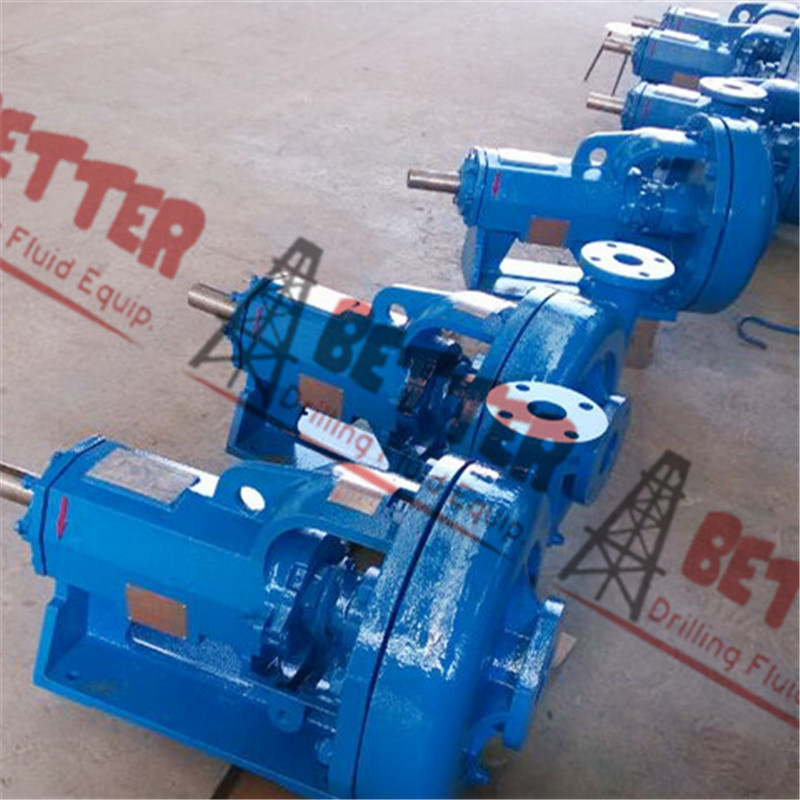

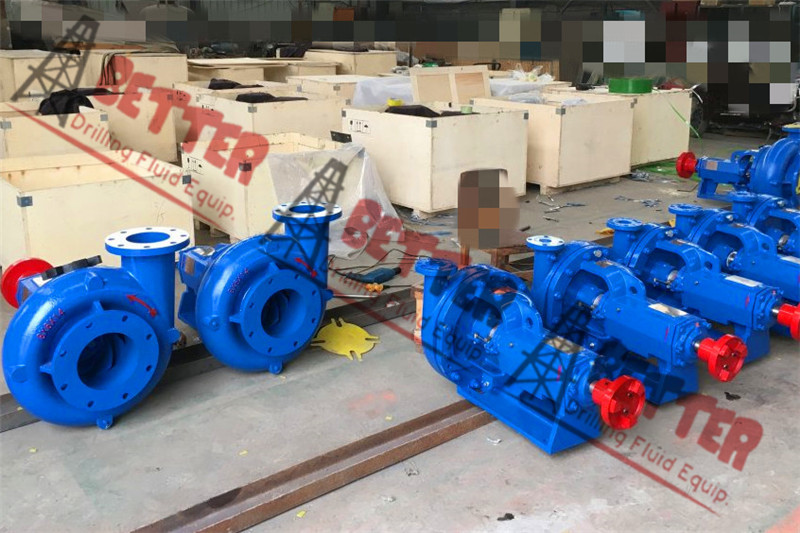

BETTER Mission Magnum pump 6x5x14 w/Mechanical Seal RH Impeller 0BETTER Mission Magnum pump 6x5x14 w/Mechanical Seal RH Impeller 1BETTER Mission Magnum pump 6x5x14 w/Mechanical Seal RH Impeller 2
