Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG

Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG

    • Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG
    • Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG
    • Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG
    • Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG
    • Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG
    • Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG
    • Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG
  • Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: SB2500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD 2000.00-2200.00 PER SET
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Painting Color: Can Be Customized Material: Hard Iron
    Sealing Type: Mechanical Seal Impeller: 13" Open Type
    Shaft: Heavy Duty 2.5" Suction Size: 8
    Discharge Size: 6 Driven: Motor Or Diesel Engine

    BETTER designs and produces series of heavy-duty centrifugal pumps which is equivalent to all kinds of foreign major brand design, basing on the introduced brand drawings and samples. Though our pump’s function is similar as most of factories made in China, but why we gave up the domestic common design to build a new line:





    Sand Pump 2500SB8×6-13(100HP)
    Case 2500SB68JC-14.1.1 W001-045-04-001

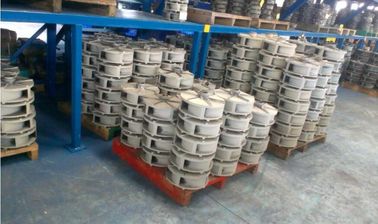

    Impeller SB68(56)JC-14.1.2 W001-045-04-002
    Wear pad 2500SB56JC-26.1.3 W001-045-04-003
    Paper Gasket SB56JC-26.1.4 W001-045-02-004
    Studs M16*70 GB899-88 W001-045-02-005
    Nuts M16 GB41-86 W001-045-02-006
    Spring washer 16 GB93-87 W001-045-02-007
    Paper Gasket SB56JC-26.1.5 W001-045-02-008
    Studs M12*60 GB899-88 W001-045-04-009
    Nuts M12 GB41-86 W001-045-02-010
    Spring washer 12 GB93-87 W001-045-02-011
    Stuffing box 2500SB56JC-26.1.6 W001-045-04-012
    Cover, inboard SB56-18.1.6 W001-045-04-013
    Paper Gasket SB56-18.1.15 W001-045-02-014
    Oil seal 63.5*88.8*12 KIT20619 W001-045-02-015
    Bearing 2313 GB/T281-94 W001-045-02-016
    Oil cover SB68-1.16 W001-045-02-017
    Frame 2500SB56-18.1.7 W001-045-04-018
    Bearing house SB56-18.1.8 W001-045-04-019
    O-ring 140*3.1 GB1235-79 W001-045-02-020
    Bearing 7311ACM GB/T292-94 W001-045-04-021
    O-ring 125*3.1 GB1235-79 W001-045-02-022
    Grease fitting M10*1 GB1152-89 W001-045-02-023
    Locknut M52*2 GB812-88 W001-045-02-024
    Lock washer 52 GB858-88 W001-045-02-025
    Cover, outboard SB56-18.1.9 W001-045-04-026
    Oil seal 47.6*69.9*10 KIT20619 W001-045-02-027

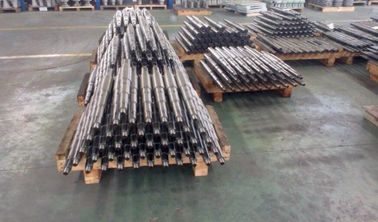

    Shaft 2500SB56JC-26.1.7 W001-045-04-028
    Bolts M12*30 GB5782-86 W001-045-02-029
    Nuts M12 GB41-86 W001-045-02-010
    Spring washer 12 GB93-87 W001-045-02-011
    Bolts M10*30 GB5782-86 W001-045-02-032
    Spring washer 10 GB93-87 W001-045-02-033
    Oil gauge A12 GB1160.1-86 W001-045-02-034
    Plug ZG1/2″ GB3289.31-82 W001-045-02-035
    Deflector SB56-18.1.11 W001-045-04-036
    Gland bolts M12*70 GB798-88 W001-045-02-037
    Nuts M12 GB41-86 W001-045-02-010
    Washer 12 GB97-85 W001-045-02-039
    Bolts M10*45 GB5782-86 W001-045-04-040
    Washer 10 GB97-85 W001-045-04-041
    Packing gland set 2500SB68J-4.1.4.0 W001-045-04-042
    O-ring 55*3.1 GB1235-79 W001-045-02-043
    Packing 10*10 T3101 W001-045-04-044
    Pin SB68J-4.1.6 W001-045-04-045
    Sleeve, shaft SB68J-4.1.5 W001-045-04-046

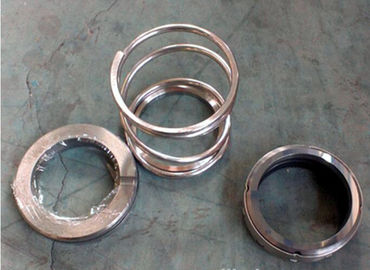

    Mechanical seal VJ56 W001-045-04-047
    Cover SB68-1.1.20 W001-045-04-048
    Bolts M8*15 GB5781-86 W001-045-02-049
    Spring washer 8 GB93-87 W001-045-02-050
    Thin key C6*25 GB1567-79 W001-045-02-051
    Key C14*70 GB1096-79 W001-045-04-052
    Domed cap nuts M30*2 SB68F-7.1.3 W001-045-04-053
    Nuts M30*2 SB68F-7.1.4 W001-045-04-054
    Washer 30 SB68-1.1.13 W001-045-04-055
    Pump head 75KW 2500SB68JC-14.1.0 W001-045-04-056
    Shield cover 75KW SB68-1.2 W001-045-04-057
    Pump joint SB56JC-26.2 W001-045-02-058
    Electromotor joint 75KW SB68-1.4 W001-045-04-059
    Motor 75KW YB280S-4 W001-045-04-060
    Foundation 75KW 2500SB68JC-14.2.0 W001-045-04-061
    Bolts M20*70 GB5780-86 W001-045-04-062
    Nuts M20 GB41-86 W001-045-04-063
    Spring washer 20 GB93-87 W001-045-02-064
    Washer 20 GB97-85 W001-045-02-065
    Bolts M10*20 GB5781-86 W001-045-04-066
    Washer 10 GB97-85 W001-045-02-041
    Key 12.6*90 SB56JC-26.4 W001-045-02-068
    Key C20*110 GB1096-79 W001-045-04-069
    Pole pin, Sleeve 10 GB5014-85 W001-045-04-070
    Bolts M20*90 GB5780-86 W001-045-04-071
    Nuts M20 GB41-86 W001-045-04-072
    Spring washer 20 GB93-87 W001-045-04-073
    Washer 20 GB97-85 W001-045-02-065
    Rubber Gasket φ200   W001-045-04-075
    Rubber Gasket φ150   W001-045-04-076
    Shear Pump WJQ5×6JC-10
    Pump case WIQ56J-3.1.1 W001-046-01-001
    Impeller set WIQ56-1.1.5.0 W001-046-01-002
    Shear plate WIQ56-1.1.2 W001-046-01-003
    Backing Plate WIQ56-1.1.6 W001-046-01-004
    Wear plate SB56JC-26.1.3 W001-046-01-005
    Paper gasket SB56JC-26.1.4 W001-045-02-004
    Screw studs M16*75 GB899-88 W001-046-01-007
    Nuts M16 GB41-86 W001-045-02-006
    Spring washer 16 GB93-87 W001-045-02-007
    Paper gasket SB56JC-26.1.5 W001-045-02-008
    Bolts M12*45 GB5780-86 W001-046-01-011
    Nuts M12 GB41-86 W001-045-02-010
    Spring washer 12 GB93-87 W001-045-02-011
    Stuffing box SB56JC-26.1.6 W001-046-01-014
    Cover, inboard SB56-18.1.6 W001-046-01-015
    Paper cover SB56-18.1.5 W001-046-01-016
    Oil seal 63.5*88.8*12 KIT20619 W001-045-02-015
    Bearing 2313 GB/T281-94 W001-045-02-016
    Oil hole cover SB68-1.16 W001-046-01-019
    Pump base SB56-18.1.7 W001-046-01-020
    Bearing housing SB56-18.1.8 W001-046-01-021
    O-ring 140*3.1 GB1235-79 W001-045-02-020
    Bearing 7311ACM GB/T292-94 W001-045-04-021
    O-ring 125*3.1 GB1235-79 W001-045-02-022
    Grease fitting M10*1 GB1152-89 W001-045-02-023
    Round nuts M52*2 GB812-88 W001-046-01-026
    Lock washer 52 GB858-88 W001-045-02-025
    Cover outboard SB56-18.1.9 W001-046-01-028
    O-ring 47.6*69.9*10 KIT20619 W001-045-02-027
    Shaft WJQ56J-3.1.2 W001-046-01-030
    Bolts M12*35 GB5782-86 W001-046-01-031
    Nuts M12 GB41-86 W001-045-02-010
    Spring washer 12 GB93-87 W001-045-02-011
    Bolts M10*30 GB5782-86 W001-045-02-032
    Spring washer 10 GB93-87 W001-045-02-033
    Oil gauge A12 GB1160.1-86 W001-045-02-034
    Plug ZG1/2″ GB3289.31-82 W001-045-02-035
    Defector SB56-18.1.11 W001-046-01-038
    Plug ZG3/4 GB3289.31-82 W001-045-03-037
    Gland bolts M12*80 GB798-88 W001-046-01-040
    Nuts M12 GB41-86 W001-045-02-010
    Washer 12 GB97-85 W001-045-02-039
    Bolts M10*50 GB5782-86 W001-045-02-040
    Washer 10 GB97-85 W001-045-02-041
    Packing gland set SB68J-4.1.4.0 W001-046-01-045
    O-ring 55*3.1 GB1235-79 W001-045-02-043
    Packing 12*12 T3101 W001-046-01-047
    Pin, Stationary Seal SB68J-4.1.6 W001-046-01-048
    Sleeve, shaft SB68J-4.1.5 W001-046-01-049
    Spring WJQ56J-3.1.3 W001-046-01-050
    Mechanical seal assembly VJ56 W001-046-01-051
    Cover SB68-1.1.20 W001-046-01-052
    Bolts M8*15 GB5781-86 W001-045-02-049
    Washer 8 GB93-87 W001-045-02-050
    Thin key C6*25 GB1567-79 W001-045-02-051
    Key C12*100 GB1096-79 W001-046-01-056
    Domed cap nuts M30*2 SB68F-7.1.3 W001-045-04-053
    Nuts M30*2 SB68F-7.1.4 W001-045-04-054
    Washer 30 SB68-1.1.13 W001-045-04-055
    Double head studs M12*50 GB898-88 W001-046-01-060
    Nuts M12 GB6170-88 W001-046-01-061
    Spring washer 12 GB93-87 W001-045-02-011
    Front Wear plate WIQ56-1.1.4 W001-046-01-063
    Pump head 75KW WJQ56JC-1.1.0 W001-046-01-064
    Foundation 75KW WJQ56-2.1.0 W001-046-01-065
    Bolts M20*70 GB5780-86 W001-045-04-062
    Nuts M20 GB41-86 W001-045-04-063
    Spring washer 20 GB93-87 W001-045-04-064
    Pump strap wheel WJQ56-1.3 W001-046-01-069
    Bolts M12*45 GBG5780-86 W001-046-01-011
    Washer 12 GB93-87 W001-045-02-011
    Taper Bushing WJQ56-1.4 W001-046-01-072
    Key C12*105 GB1096-79 W001-046-01-073
    Triangle V strap L=2030 GB/T1357.2-92 W001-046-01-074
    Electromotor strap wheel 75KW WJQ56-2.2 W001-046-01-075
    Key C18*140 GB1096-79 W001-046-01-076
    Shield cover WJQ56-1.6.0 W001-046-01-077
    Bolts M20*70 GB5780-86 W001-045-04-062
    Nuts M20 GB41-86 W001-045-04-063
    Spring washer 20 GB93-87 W001-045-04-064
    Washer 20 GB97-85 W001-045-02-065
    Pin WJQ56-1.7 W001-046-01-082
    Ringent pin 4*30 GB91-86 W001-046-01-083
    Bolts M20*90 GB5781-86 W001-046-01-084
    Bolts M18*180 WJQ56-1.8 W001-046-01-085
    Nuts M18 GB41-86 W001-045-02-006
    Spring washer 18 GB93-87 W001-046-01-087
    Electromotor foundation WJQ56-2.3.0 W001-046-01-088
    Electromotor 75KW YB280S-4 W001-046-01-089
    Rubber Gasket φ150   W001-046-01-090
    Rubber Gasket φ125   W001-046-01-091



    Sand Pump 2500SB8×6-13 HONGHUA DRILLING RIG 50ZJ SPARE PARTS for UAE NABORS DRILLING RIG
