    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: FIG1502

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: OFFER
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description

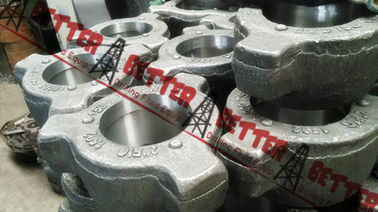

    Material: ALLOY STEEL FORGED CONNECTION: WELD OR THREAD
    FIG NO: FIG1502, 1002, 2202 COLOR: STANDARD

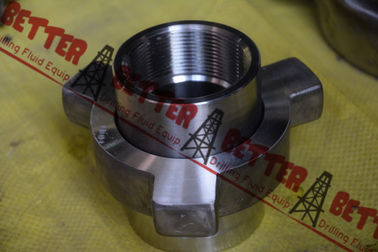

    Wing Unions for High Pressure service 6000 – 20000psi

    Feature-

    Sealing with a replaceable lip-type seal ring in the female sub, this primary seal protects the secondary metal-to-metal seal from abrasion and corrosion while minimizing flow turbulence



    Figure 600

    • Recommend for air, oil, gas or steam service to 6000psi cold working pressure manifold, line connection for drilling, well servicing
    • Size from 1” – 4”
    • Rugged and fast 2 pitch acme thread make it quickest union
    • Fitted with a bronze seal insert as primary seal, not rust in water service
    • API standard thread and butt-weld end connection available
    • Black Nut & Silver Sub

    Figure 602

    • Recommend for air, oil, gas or steam service to 6000psi cwp manifold, line connection and mud service
    • Size from 1” – 4”
    • Replaceable lip-type seal provides primary seal, protect metal-to-metal seating surface
    • Available for sour gas service
    • Smaller than lighter than Fig.600, recommend for truck mounting where size and weight are critical
    • API standard thread and butt-weld end connection available
    • Black Nut & Orange Sub

    Figure 1002

    • Recommend for high pressure manifold system, cementing, fracturing, acidizing, testing and choke kill lines;10000psi cwp through 4”, and 7500 psi cwp for 5” and 6”
    • Size from 1” – 6”
    • Replaceable lip-type seal (Buna-N) provides primary seal, protect secondary metal-to-metal seating surface, 5” and 6” have O-ring for primary seal
    • Available for sour gas service
    • API standard thread and butt-weld end connection available
    • Red Nut & Blue Sub

    Figure 1003 Misaligning Union

    • Recommend for high pressure connections where lines can’t be aligned, 10000psi cwp for 2” and 3”, 7500psi cwp for 4” and 5”
    • Size from 2” – 5”
    • Ball seat provides positive seal with up to +/-7.5 ° misalignment
    • Available for sour gas service
    • Replacement O-ring one male sub provides primary seal, to protect metal-to-metal seal against abrasion and corrosion
    • API standard thread and butt-weld end connection available
    • Black Nut & Green Sub
    Pipe size Length Countersink Nut radius Materal Weight
    Nut Sub
    in mm   in mm in mm Black Green Ibs kgs
    3 76.2 NPT 91/8 231.8 47/8 123.8 SC AS 45.0 99.2
    3 76.2 SCH160 87/8 225.4 47/8 123.8 SC AS 47.5 104.7
    3 76.2 XXHVY 91/8 231.8 47/8 123.8 SC AS 48.5 106.9
    4 101.6 NPT 1015/16 277.8 53/4 146.0 SF SF 72.0 158.7
    4 101.6 SCH160 1011/16 271.5 53/4 146.0 SF AS 76.0 167.5
    4 101.6 XXHVY 1015/16 277.8 53/4 146.0 SF AS 78.0 172.0
    5 127 SCH160 103/4 273.1 53/4 146.0 SF AS 74.0 163.0
    5 127 XXHVY 1015/16 277.8 53/4 146.0 SF AS 76.5 168.7

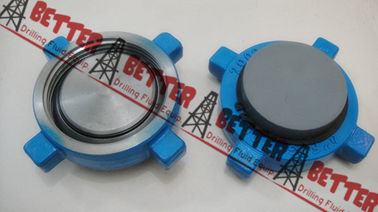

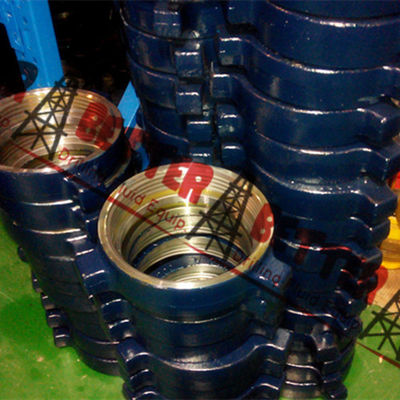

    Figure 1502

    • Recommend for air, water, oil, gas and mud service 15000psi CWP cementing, fracturing, acidizing, testing and choke kill lines
    • Size from 1” – 5”
    • Available for sour gas service up to 10000psi
    • Replacement lip-type seal provides primary seal (Buna-N), to protect metal-to-metal seal against abrasion and corrosion
    • API standard thread and butt-weld end connection available
    • Blue Nut & Red Sub
    Pipe size Length Countersink Nut radius Materal Weight
    Nut Sub
    in mm in mm in mm in mm Blue Red Ibs kgs
    11/2 38.1 513/32 137.0 1/4 6.4 321/32 93.0 SF SF 12.0 5.4
    2 50.8 7 177.8 15/64 6.0 33/4 95.3 SF SF 21.0 9.5
    3 76.2 75/8 193.7 3/8 9.5 41/2 114.3 SF SF 31.0 14.1

    Figure 2002

    • Recommend for 20000psi cold working pressure standard service cementing, fracturing, acidizing, testing and choke kill lines
    • Size from 2”, 3”
    • Replacement lip-type seal provides primary seal (Buna-N), to protect metal-to-metal seal against abrasion and corrosion
    • Butt-weld end connection only
    • Green Nut & Green Sub
    • Figure 2202 for sour gas service, up to 15000psi, size from 2” and 3” available in butt-weld only, MR-01-75 standard



    Wing Unions for Sour Gas Service

    Figure 400, Figure 602, Fig.1002, Fig.1003, Fig.1502, Fig.2202

    BETTER Hammer Union Wing Unions equal FMC WECO KEMPER for High Pressure service, FIG.600, FIG.602, FIG.1002, FIG1502
