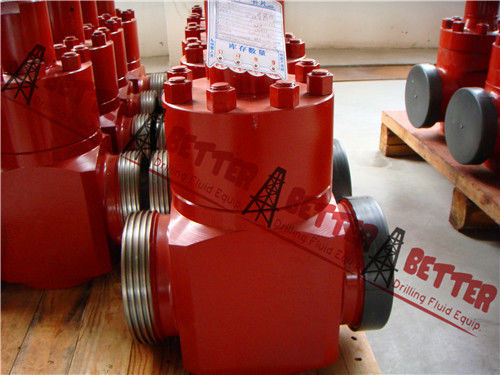

BETTER Z23Y style Metal Seal Mud Gate Valve Metal to Metal sealing,Alloy Steel Body, Union, Flanged, BW Connection

BETTER Z23Y style Metal Seal Mud Gate Valve Metal to Metal sealing,Alloy Steel Body, Union, Flanged, BW Connection

    • BETTER Z23Y style Metal Seal Mud Gate Valve Metal to Metal sealing,Alloy Steel Body, Union, Flanged, BW Connection
    • BETTER Z23Y style Metal Seal Mud Gate Valve Metal to Metal sealing,Alloy Steel Body, Union, Flanged, BW Connection
    • BETTER Z23Y style Metal Seal Mud Gate Valve Metal to Metal sealing,Alloy Steel Body, Union, Flanged, BW Connection
    • BETTER Z23Y style Metal Seal Mud Gate Valve Metal to Metal sealing,Alloy Steel Body, Union, Flanged, BW Connection
    • BETTER Z23Y style Metal Seal Mud Gate Valve Metal to Metal sealing,Alloy Steel Body, Union, Flanged, BW Connection
  • BETTER Z23Y style Metal Seal Mud Gate Valve Metal to Metal sealing,Alloy Steel Body, Union, Flanged, BW Connection

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: Z23Y style

    Payment & Shipping Terms:

    Price: USD 500.00 PER SET
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Minimum Order Quantity: 1 PC
    Contact Now
    Detailed Product Description
    Standard Or Nonstandard: Standard Structure: Gate
    Pressure: High Pressure Power: Manual
    Material: Alloy Temperature Of Media: Normal Temperature
    Media: Base

    Z23Y / Z43Y series of mud gate valves are designed by parallel-type Metal to Metal Sealing, mainly used for Oil and Gas lines, Wellheads, Manifolds and Pipelines, Crude Oil and Sour Gas, Well Treating Chemicals. It is convenient to open, the two ends of the valve and pipes are joined and staled with spherical movement, the movable connection of the rubber seal ring like "O" is not of high requirement about straightness of the two ends of pipes, When is fitted and its seal performance is good.



    All our valves are designed in accordance with API 6A standard and can full interchangeable with famous brands (DEMCO, OTECO, CAMERON, ANSON, and MUDKING), equivalent to DEMCO DM type, OTECO Model 72, CAMERAN FC/FL type, which is applied in Mud pump line, standpipe manifolds, oil and gas pipelines, abrasive drilling mud system, corrosive water flood lines, cementing services, wellheads, and well treating chemicals

    Specifications:
    Designed specifically for abrasive and erosive condition
    Gates available: Nickel-plated carbon steel, Monel, Aluminum Bronze or Stainless Steel
    Stainless or Carbon Steel Inserts with Nitrile or HNBR Elastomer
    Connection: Flange/Thread/Butt weld/Hammer Union
    Pressure ratings 2000psi, 3000psi, 5000 psi in 2", 3", 4", 5" x 4" and 6" x 4" Valve Sizes

    Working Temperature: -46°C ~ +121°C

    Sour Service Models to NACE MR-01-75
    Specification Level: PSL1 ~ PSL4

    Performance Requirement: PR1 ~ PR2

    Factory Pressure Tested in Accordance with API.6A


    BETTER Z23Y style Metal Seal Mud Gate Valve Metal to Metal sealing,Alloy Steel Body, Union, Flanged, BW Connection

    Specification

    MODEL

    Z23Y-35-

    DN50

    Z23Y-35-

    DN65

    Z23Y-35-

    DN80

    Z23Y-35-

    DN100

    Z43Y-70-

    DN50

    Z43Y-70-

    DN65

    Z43Y-70-

    DN80

    Z43Y-70-

    DN100

    W.P. 5000 PSI 10000 PSI
    SIZE

    50

    (2 1/16”)

    65

    (2 9/16”)

    80

    (3 1/8”)

    100

    (4 1/16”)

    50

    (2 1/16”)

    65

    (2 9/16”)

    80

    (3 1/8”)

    100

    (4 1/16”)

    MEDIUM MUD
    CONNECTON UNION,THREADED,BUTT WELDED FLANGE
    CONNECTION SIZE

    Tr120x6

    (Tr100x12)

    Tr130x6

    (Tr120x12)

    Tr150x6 Tr180x6 BX152 BX153 BX154 BX155
    STRUCTURE LENGTH 230 235 270 330 356 380 430 520



    PART LIST REFERENCE

    KEY NO. DESCRIPTION QTY. MATERIAL
    1 BODY 1 4130
    2 GATE 1 4130
    3 SEAT 2 4130
    4 O-RING 4 NBR
    5 WAVE SPRING 2 410
    6 SEALING RING 2 NBR
    7 STEM 1 410
    8 BONNET SEAL RING 1 1010
    9 BONNET 1 4130
    10 BONNET NUT 8 5140
    11 BONNET STUD 8 4130
    12 STEM LIP PACKING 3 NBR
    13 PACKING RING 1 410
    14 PACKING GLAND 1 4130
    15 BEARING 2 ASSY.
    16 STEM NUT 1 4130
    17 FLAT KEY 1 STEEL
    18 BEARING CAP 1 5140
    19 OIL CUP 1 ASSY.
    20 O-RING 1 NBR
    21 HUB ASSY. 1 STEEL
    22 LOCK HANDLE 1 STEEL
    23 STEM PROTECTOR 1 1035
