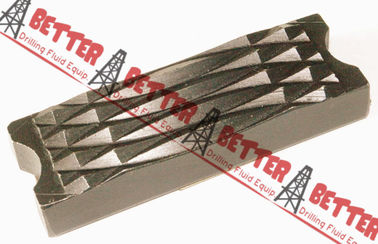

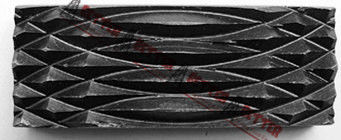

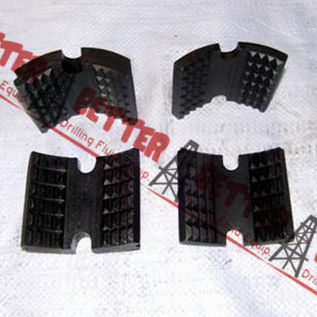

TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.

TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.

    • TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.
    • TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.
    • TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.
    • TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.
    • TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.
    • TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.
  • TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: XY114/6YB XQ140/12Y

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD5.00 PER SET
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Hardness: HRC56-62
    Surface: Phosphating Color: Black

    Drilling Fluid Equipment Industrial Limited could supply a wide range of tong dies and inserts, and dedicated to be an expert in this field with our own specialization and valuable experience. All our die and inserts are forged and machined, to provide the accuracy required for today's critical applications. The high grade material selected and professional heat treating process provides a suitable hardness, to ameliorate the performance of wear-resisting and corrosion-resisting to a maximum service life. Phosphating or blasting will be done for the surface treatment. Various tooth patterns are available for specific applications. Custom is available.

    Interchangeability Warranty

    100% interchangeable with OEM design, including BJ, Varco, Web Wilson, B+V, Woolley, Eckel, Farr, Weatherford, BAASH-ROSS Cavins, TD, Rushi, but more cost-effective!



    MANUAL TONG DIES , Coarse, Plain, Blue Diamond tooth

    We can supply those tong dies for BJ Type B, DB, B Extend/HT50, HT55, HT65 Manual Tong, Web Wilson AAX, H, Woolley Type Super A, B, B+V BV-55, BV-57, BV-65, BV-80, BJ Type SDD, C, F & LF Manual Tong, BJ Power Casing Tong( 4 ½”-13 3/8”), Woolley Type Super C, Eckel model 850, Web Wilson, B+V BV-25, BV-35, BV-100, Short Die for BJ Type B Manual Tong, BJ Drill Pipe Power Tong, Eckel Power Casing Tong, Farr Power Tongs, BJ Powermatic tong, Farr Power Tong, Weatherford 5 ½” & 7 /8”

    Dimension: 1/2” x 1.1/4” x 5.7/8”, 1/2” x 1.1/4” x 5”, 1/2” x 1.1/4” x 3.7/8”, 3/8” x 1” x 3.7/8”

    Part No.: 16402-2, 16402-6, 6416039, 4716, 627-185-1578, 16401-2, 16401-6, 16401-1, 16401, 6416020, 4631

    103426, 4616, 627-185-1500, 24768-2, 101-251, 337-02-098, 6416012, 24768-8, 24768, 24770-2, 6473, 12-1003, 6400019

    POWER TONG DIES , Coarse, Plain, Blue Diamond tooth

    BJ Drill Pipe Power Tong, RUSHI Drill Pipe Power Tong ZQ 203-100/125, TD Tubing Power Tong XQ89/3YB, XQ89/3YC, XY114/6YB, XQ140/12Y

    Dimension: 1/2” x 1.1/4” x 3.7/8”, 7/16” x 1 ¼” x 3 1/16”, 1 3/16” x 1 ¼” x 3 1/2”

    Part No.: 73-78, 89-114, 121-156, 89-141.5

    DIES FOR POWER TONGS
    Tong Type Model Pipe Size
    BJ Drill Pipe Power Tong

    1/2” x 1.1/4” x 3.7/8”

    /

    RUSHI Drill Pipe Power Tong

    ZQ 203-100/125

    7/16” x 1 ¼” x 3 1/16”

    Blue Diamond

    /

    1 3/16” x 1 ¼” x 3 1/2”

    Blue Diamond

    /

    TD Tubing Power Tong

    XQ89/3YB

    XQ89/3YC

    Thin 89 ( 3 ½”)
    Middle-thick 73 ( 2 7/8”)
    Extra-thick 60 ( 2 3/8”)

    TD Tubing Power Tong

    XY114/6YB

    Big arc 89-141.5(3 ½”-5 ½”)
    Small arc 73-78(2 7/8”)

    TD Tubing Power Tong

    XQ140/12Y

    I 73-78(2 7/8”)
    II 3/8” x 1” x 3 7/16” 89-114(3 ½”-4 ½”)
    III 121-156(4 ¾”-6 1/8”)

    TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.

    INSERTS FOR ROTARY SLIPS VARCO MODEL SDS/SDML/SDXL & BAASH-ROSS MODEL DU

    Slip dies or slip inserts: 2160, 2161, 2162, 2163, 2164, 2165, 2166, 2167, 2168, 2169, 2170, 7613-A-82, 7613-B-82, 7613-C-82, 7613-FF-81, 7613-A-81, 7613-E-81, 7613-E-82, 7613-G-81, 7613-H-81, 7613-Z-81, 7613-DD-81, 7613-EE-81

    Circular Buttons FOR VARCO DRILL COLLAR SLIPS - DCS-S / DCS-R / DCS-L & CASING SLIPS CMS-XL

    Circular Buttons: 2620, 2628, 2630, 2627, 2625, 2619, 2631, 2626

    DIES FOR VARCO SAFETY CLAMP TYPE –MP, T, WA-T, C, WA-C

    Safety clamp dies: 7624-A-21, 7624-A-4, 3310, and 3333

    INSERTS FOR BJ SLIP TYPE ELEVATORS “LYT” “MYT” “YT” “HYT” “YC”

    Original Part no.: 28772, 24773, 29255, 29256, 29357, 29257, 29258, 29259, 30358, 16441, 16442, BJ16408, 24781, 24779, BJ16407, 24783, 24748

    FULL CIRCLE SLIP INSERTS FOR C CHD E CAVINS TUBING SPIDER

    Slip Insert 3 ½” x 2 3/8”, 66651-1ST, Slip Insert 3 ½” x 2 7/8”, 66651-2ST, Slip Insert 3 ½” x 3 1/2”, 66651-3ST, Slip Insert 5 ½” x 4 1/2”, 66653-2ST, TC-650-4 1/2” x 4 1/2”, 65653-3, TC-651-4 1/2” x 4”, 65653-2, TC-651-41/2” x 3 1/2”, 65653-1, TC-650-3 1/2” x 3 1/2”, 65625-3, TC-651-3 1/2” x 2 7/8”, 65625-2, TC-651-3 1/2” x 2 3/8”, 65625-1, TC-650-2 1/16” x 2 1/16”, TC-651-2 1/16” x 1.990”, TC-651-2 1/16” x 1.660”, TC-651-2 1/16” x 1.135”

    Please contact our sales if you are interested in any of our products.
