VARCO BJ SLIP TYPE ELEVATORS "Y" SERIES YT MYT YC MYC CENTRER LATCH ELEVATOR HIGH ALLOY STEEL FORGED NORMAL TEMP.

VARCO BJ SLIP TYPE ELEVATORS "Y" SERIES YT MYT YC MYC CENTRER LATCH ELEVATOR HIGH ALLOY STEEL FORGED NORMAL TEMP.

    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K
    Model Number: VARCO TYPE Y SLIP TYPE ELEVATOR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD2500-5000 per piece
    Packaging Details: Plywood Case
    Delivery Time: 20-25 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Performance: Long Service Life
    Advantage: Competitive Price Quality: Strict Inspection, TPI Available

    SLIP TYPE ELEVATORS "Y" SERIES

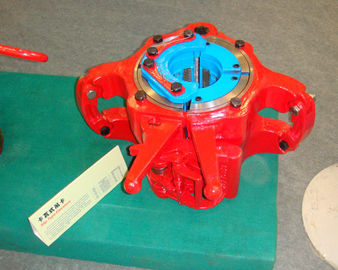

    Varco BJ "Y" Series elevators are conventional slip type elevators for handling tubing and small casing. There are 7 types ranging from 20 to 200 ton capacity and covering pipe sizes from 1.05 to 7 5/8 inchese OD. They feature a four slip design which give an optimum contact on the pipe to prevent bttlenecking and gauge damage.

    The Varco BJ "YC" type elevator is capable of handling dual tubing strings. All type "Y" series elevator operate with the latch lock combination for safety. The "MYC" and "YC" provide a 7" and the "HYC" a 10 1/2" of intert contact to grip your casing or tubing.

    VARCO BJ SLIP TYPE ELEVATORS "Y" SERIES YT MYT YC MYC CENTRER LATCH ELEVATOR HIGH ALLOY STEEL FORGED NORMAL TEMP.



    Technical Specifications
    Size Type Capacity ton Weight
    in mm lb kg
    1.050~ 2 1/16 27~73 LYT 20 57 26
    1.315~2 7/8 33~73 MYT 40 148 67
    1.315~3 1/2 33~89 YT 75 355 161
    2 3/8~3 1/2 60~89 HYT 150 750 336
    3 1/2~7 89~178 YC 75 445 206
    3 1/2~7 89~178 MYC 125 750 336
    2 7/8~7 5/8 89~194 HYC 200 997 452
    2 7/8~7 5/8 89~194 HYC AO 200 1465 665
