| Place of Origin: | China |
| Brand Name: | BETTER |
| Certification: | API 7K, 6A, 8C, ISO |
| Model Number: | KEMPER |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | OFFER |
| Packaging Details: | Carton, Plywood Case |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, West Union |
| Supply Ability: | Fast Delivery, Plenty in Stock |
| Material: | 20#carbon Steel | Seal: | NBR RUBBER |
|---|---|---|---|
| STYLE: | KEPLER | PRESSURE: | 150PSI |

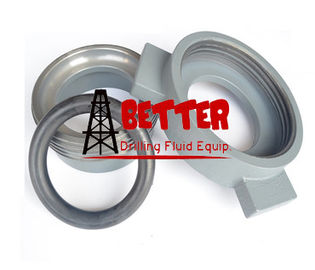

BETTER KEMPER BULLDOG style Hammer Seal Union
Hammerseal Unions / Tank Unions/ to join mud tanks without the work associated with flanged connections quickly; Even if the tanks are not aligned perfectly, still made up tight for a non-leak seal;
Sealing fluid pressures up to 150 psi against the outside diameter of the connecting pipe. Including O-ring, available sizes in 4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 20”
Equivalent to KEMPER Hammer-seal Union, BULLDOG Mud Tank Union
P/N: PS400A, PS600A, PS800A, PS100A, PS120A, PS140A, PS160A, PS180A, PS200A

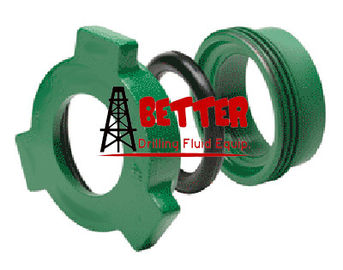

Hammer seal Union/Tank union
BETTER offers the most complete line of tank unions with the size from 6” to 14”, which is equivalent to Kemper style.
It is an updated design based on Air Grip Unions. These tank unions can accept pipe misalignment to finish an excellent connecting and sealing, and installation and uninstall rapidly, which has been widely used in mud tanks, mud tank connecting lines, and pump suction flanges. These are manufactured for a maximum line pressure of 150 PSI. The nitrile seal provides compressive seal, the cross-section of the seal designed to provide greater sealing surface. The union is designed to take a maximum of 7° misalignment on the pipe.
Specification-
|
Type
|
Connect Pipe O.D.
|
Female Sub *
Weld to
|
Mud Tank Union Dimensions in mm
|
|||||||
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|||
|
4-inch
|
4 ½”(114.3mm)
|
6”
|
264
|
168
|
150
|
127
|
50
|
155
|
114
|
21
|
|
6-inch
|
6 5/8”(168.3mm)
|
8”
|
340
|
219
|
200
|
127
|
50
|
208
|
168
|
21
|
|
8-inch
|
8 5/8”(219.1mm)
|
10”
|
343
|
273
|
253
|
127
|
50
|
258
|
219
|
21
|
|
10-inch
|
10 3/4” (273.1mm)
|
12”
|
432
|
325
|
305
|
127
|
50
|
311
|
273
|
21
|
|
12-inch
|
12 3/4”(323.9mm)
|
14”
|
491
|
355
|
336
|
127
|
50
|
364
|
324
|
21
|
|
14-inch
|
14” (355.6mm)
|
16”
|
557
|
406.4
|
381
|
127
|
50.8
|
395
|
356
|
21
|
|
16-inch*
|
16”(406.4mm)
|
18”
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
|
18-inch*
|
18”(457mm)
|
20”
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
|
20-inch*
|
20”(508mm)
|
22”
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
