    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: CHD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: usd30.00 per set
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: 20CrMoTi Alloy Steel Surface: Phosphating
    Color: Black

    INSERTS FOR CAVINS TUBING SPIDER C
    Full Circle Inserts for Cavins Type C spider( 2 1/16” body)

    Description

    (Slip size x Pipe size)

    Original P/N #/ Set
    2 1/16” x 2 1/16” TC-650-2 1/16” x 2 1/16”

    4

    4

    4

    4

    2 1/16” x 1.900”(1 1/2”) TC-651-2 1/16” x 1 1/2”
    2 1/16” x 1.660”( 1 1/4”) TC-651-2 1/16” x 1 1/4”
    2 1/16” x 1.315”(1”) TC-651-2 1/16” x 1”
    Full Circle Inserts for Cavins Type C spider( 3 1/2” body)
    3 1/2” x 3 1/2” TC-650-3 1/2” x 3 1/2”

    4

    4

    4

    3 1/2” x 2 7/8” TC-651-3 1/2” x 2 7/8”
    3 1/2” x 2 3/8” TC-651-3 1/2” x 2 3/8”
    Full Circle Inserts for Cavins Type C spider( 4 1/2” body)
    4 1/2” x 4 1/2” TC-650-4 1/2” x 4 1/2”

    4

    4

    4

    4 1/2” x 4” TC-651-4 1/2” x 4”
    4 1/2” x 3 1/2” TC-651-41/2” x 3 1/2”

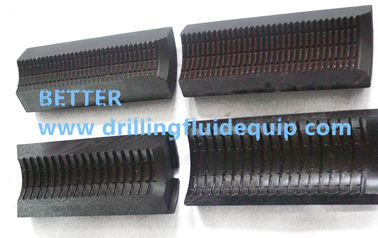

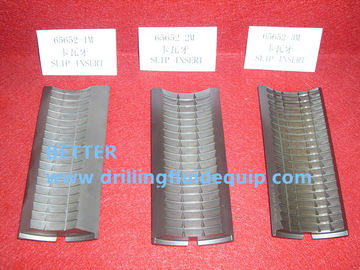

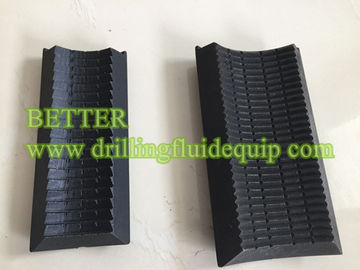

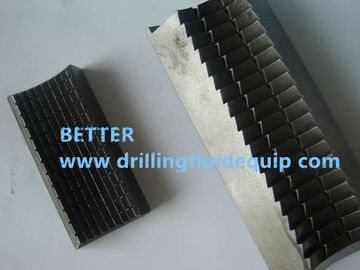

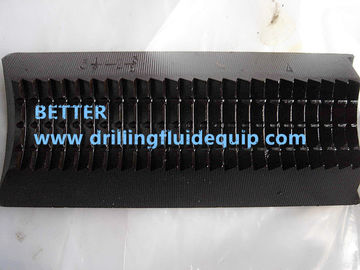

    FULL CIRCLE SLIP INSERTS FOR C CHD E CAVINS TUBING SPIDER

    FULL CIRCLE SLIP INSERTS TONG DIES FOR C CHD E CAVINS TUBING SPIDER ALLOY STEEL PHOSPHATING SURFACE TREATMENT API 7K STD



    Drilling Fluid Equipment Industrial Limited could supply a wide range of tong dies and inserts, and dedicated to be an expert in this field with our own specialization and valuable experience. All our die and inserts are forged and machined, to provide the accuracy required for today's critical applications. The high grade material selected and professional heat treating process provides a suitable hardness, to ameliorate the performance of wear-resisting and corrosion-resisting to a maximum service life. Phosphating or blasting will be done for the surface treatment. Various tooth patterns are available for specific applications. Custom is available.

    Interchangeability Warranty

    100% interchangeable with OEM design, including BJ, Varco, Web Wilson, B+V, Woolley, Eckel, Farr, Weatherford, BAASH-ROSS Cavins, TD, Rushi, but more cost-effective!



    MANUAL TONG DIES Pyramid, Coarse, Plain, Blue Diamond tooth

    We can supply those tong dies for BJ Type B, DB, B Extend/HT50, HT55, HT65 Manual Tong, Web Wilson AAX, H, Woolley Type Super A, B, B+V BV-55, BV-57, BV-65, BV-80, BJ Type SDD, C, F & LF Manual Tong, BJ Power Casing Tong( 4 ½”-13 3/8”), Woolley Type Super C, Eckel model 850, Web Wilson, B+V BV-25, BV-35, BV-100, Short Die for BJ Type B Manual Tong, BJ Drill Pipe Power Tong, Eckel Power Casing Tong, Farr Power Tongs, BJ Powermatic tong, Farr Power Tong, Weatherford 5 ½” & 7 /8”

    Dimension: 1/2” x 1.1/4” x 5.7/8”, 1/2” x 1.1/4” x 5”, 1/2” x 1.1/4” x 3.7/8”, 3/8” x 1” x 3.7/8”

    Part No.: 16402-2, 16402-6, 6416039, 4716, 627-185-1578, 16401-2, 16401-6, 16401-1, 16401, 6416020, 4631

    103426, 4616, 627-185-1500, 24768-2, 101-251, 337-02-098, 6416012, 24768-8, 24768, 24770-2, 6473, 12-1003, 6400019

    POWER TONG DIES Pyramid, Coarse, Plain, Blue Diamond tooth

    BJ Drill Pipe Power Tong, RUSHI Drill Pipe Power Tong ZQ 203-100/125, TD Tubing Power Tong XQ89/3YB, XQ89/3YC, XY114/6YB, XQ140/12Y

    Dimension: 1/2” x 1.1/4” x 3.7/8”, 7/16” x 1 ¼” x 3 1/16”, 1 3/16” x 1 ¼” x 3 1/2”

    Part No.: 73-78, 89-114, 121-156, 89-141.5

    INSERTS FOR ROTARY SLIPS VARCO MODEL SDS/SDML/SDXL & BAASH-ROSS MODEL DU

    Slip dies or slip inserts: 2160, 2161, 2162, 2163, 2164, 2165, 2166, 2167, 2168, 2169, 2170, 7613-A-82, 7613-B-82, 7613-C-82, 7613-FF-81, 7613-A-81, 7613-E-81, 7613-E-82, 7613-G-81, 7613-H-81, 7613-Z-81, 7613-DD-81, 7613-EE-81

    Circular Buttons FOR VARCO DRILL COLLAR SLIPS - DCS-S / DCS-R / DCS-L & CASING SLIPS CMS-XL

    Circular Buttons: 2620, 2628, 2630, 2627, 2625, 2619, 2631, 2626

    DIES FOR VARCO SAFETY CLAMP TYPE –MP, T, WA-T, C, WA-C

    Safety clamp dies: 7624-A-21, 7624-A-4, 3310, and 3333

    INSERTS FOR BJ SLIP TYPE ELEVATORS “LYT” “MYT” “YT” “HYT” “YC”

    Original Part no.: 28772, 24773, 29255, 29256, 29357, 29257, 29258, 29259, 30358, 16441, 16442, BJ16408, 24781, 24779, BJ16407, 24783, 24748

    Please contact our sales if you are interested in any of our products.
