Graphite Packing Teflon Packing Kevlar Packingl to Fit Mission Magnum MCM250 Baker SPD Mud Hog2.5 centrifugal pump

Graphite Packing Teflon Packing Kevlar Packingl to Fit Mission Magnum MCM250 Baker SPD Mud Hog2.5 centrifugal pump

    • Graphite Packing Teflon Packing Kevlar Packingl to Fit Mission Magnum MCM250 Baker SPD Mud Hog2.5 centrifugal pump
    • Graphite Packing Teflon Packing Kevlar Packingl to Fit Mission Magnum MCM250 Baker SPD Mud Hog2.5 centrifugal pump
    • Graphite Packing Teflon Packing Kevlar Packingl to Fit Mission Magnum MCM250 Baker SPD Mud Hog2.5 centrifugal pump
    • Graphite Packing Teflon Packing Kevlar Packingl to Fit Mission Magnum MCM250 Baker SPD Mud Hog2.5 centrifugal pump
  • Graphite Packing Teflon Packing Kevlar Packingl to Fit Mission Magnum MCM250 Baker SPD Mud Hog2.5 centrifugal pump

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: mission 250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD 85.00 PER SET
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Minimum Order Quantity: 1 PC
    Contact Now
    Detailed Product Description
    Material: Graphite, Teflon, Kevlar Structure: 5 Packings Ring With A Latern Ring
    Packing: Carton Feature: To Fit Mission, MCM, Baker, Derrick, Cobra, TSC

    Graphite Packing Mechanical Seal Harrisburg

    All BETTER pumps are built using the excellent quality components, and its parts are 100% identical in all dimensions to Mission™ Magnum™, 2500 Supreme™, Halco™ 2500, Forum™ Baker™ Mud Hog™, MCM™, Double Life™ 250, Derick Premium™ 250, XBSY™/Victory/Westpetro, TSC™/HCP, Mattco™, Cobra Pump, Harrisburg™, and Dragon™, and etc. Including casing assy., open impeller, semi-open impeller, stuffing box, wear pad, mechanical seal, packing set with lantern ring, shaft, ceramic coating shaft sleeve, shaft packing, power end gaskets, fluid end gaskets, oil seal kits, inboard bearing, outboard bearing, bearing covers, housing, etc.

    ITME PART NO CATALOG NO DESCRIPTION
    5A 648414308 22451-1 Seal, Mechanical(Tungsten Carbide Faces)
    5A 648414340 22451-2 Seal, Mechanical(Ceramic Carbon Faces)
    5A 648414357 22451-3 Seal, Mechanical(Silicon to Tungsten Faces)
    5A 22451-9A 22451-9A Seal, Mechanical(Silicon Carbide Faces)

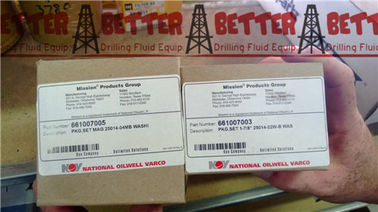

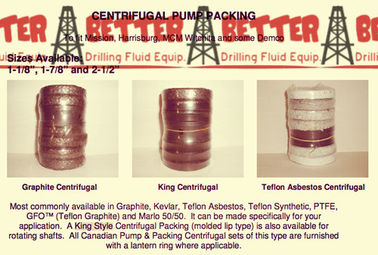

    5A 661007005 25014-04M-B Packing, Shaft, w/latern ring(Graphite)
    5A 661007008 25014-04M-BA Packing, Shaft, w/latern ring(King)
    5A 661007011 250147-04M-D Packing, Shaft, w/latern ring(Teflon)
    5A 661007006 25014-04M-C Packing, Shaft, w/latern ring(Kevlar)
    5A 648408607   Packing, Shaft-M.S. Backup(Graphite)
    5A 648408607   Ring, Latern

    Mission Pump Repair Kit we can supply includes Hard Iron Casing, Casing Gasket, Casing Studs and Nuts

    (part no.: 19203AH ,19205AH,19222AH,19122AH,19123AH,19763AH,19117AH)

    MCM 250 Shaft Sleeve Repair Kit we can supply includes Shaft Sleeve, Impeller Seal and Shaft Sleeve Seal

    (Part no.:641102182)

    Halco 2500 Centrifugal Pump Oil Seal Kits we can supply includes inboard Exclusion Seal, Inboard Oil Seal,and Outboard Oil Seal (Part no.:641103312,3002900/ 3003000/ 3004200, P25OSK, 20619A, 17693, 33-250-GSK, 052149000, H20619A)

    We also cans supply MUD HOG 2.5 Pump Fluid end Gasket kits and Power end Gasket kits that includes Casing Gasket, Impeller Seal, Shaft Sleeve Seal and inboard Bearing Gasket, Outboard Bearing Housing Seal, Outboard Bearing cover Seal

    (Part no.:3000200/ 3000700/ 3002100, P25FEGK, 10399-46-1A, 052137100, 641101076, P25FEGK, 17690, 31-250-FEGK, 052145400, P25FEGK, , 641103353,3002800/ 3003700/ 3004100, 20625A, 17692, 32-250-PEGK, 52137400, H20625A



    Bearing Lock nut kit: 6123-4A, H6123-4A, 641100409, TP-P25BLNK, 17689, 4E-250-BBLNA, P25BLNK, 052145700

    Gland Bolt Assembly: P25GABA, 17686, 10-250-GABA, 720600, 052137280, H3701A, 601102494, 052137280

    Impeller Seal O-Ring: P25IMS, 19110-72, 5530-0032, 12B-250-ISOR, 721480, WWB032V35, H19110-72

    Gland assy., packing: 641103338, 17659, 9-250-GPA, P25PG, 052136500, H20622A, 720590, 052136500

    Deflector assembly: 22210-1A, 22210-1A, 641116108, 17691, 23-250-SRW-U, P25SRW, WWW003003, H22210-1A

    Oil seal, I.B.Brg. Cover: 20619-01, 648408300, TP-P25IBBOS, 5550-005, 5B-250-OGSI, P25IBBOS, WWW003002

    Inboard Bearing Cover: P25IBBC, 20626A, 17671, 2B-250-BC, 720780, 052136710, H17950,644303109, 4A-250-BO,

    Inboard Bearing Cover Gasket: P25IBBCG, 20625, 17672, 3A-250-BCG, 721520, 052137400, H20625, 648408706

    Inboard Exclusion Oil Seal: P251BBES, 20620-01, 5550-006, 5C-250-SEXI, 720370, WWW003001, H20620-01,648408409

    Inboard Bearing: P25IBBRG, 20615-1, 50913-001, 4B-250-BI, 720300, WWENT5313, H20615-1,661009010, 50913-001

    Outboard Bearing Housing: P25OBBH, 20624-01-01, 17673, 4C-250-BH, 720800, 052136810, 644308504

    Outboard Bearing Housing O-ring: P25OBBHS, 7496-253, 5530-254, 4D-250-BHOR, 721510, WWB254H30, H7496-253,648402295,32-250-BHOR

    Outboard Bearing Cover: P25OBBC, 20617A, 17866, 2A-250-BC, 720790, 052136910, H20617-01-01,641103296

    Outboard Bearing Cover O-ring: P25OBBCS, 7496-26, 5530-246, 3B-250-BCOR, 720390, WWB248P41, H7496-26,3B-250-BBLNA

    Outboard Bearing Cover Oil Seal: P25OBBOS, 20619-02, 5550-007, 5A-250-OGSO, 720390,648408359, 5550-007, 5A-250-OGSO

    Outboard Bearing: P25OBBRG, 20616-1S, 50912-001, 4A-250-BO, 720320, WWESK7311, H20616-1,648408201S,50912-001, 2A-250-BC

    Graphite Packing Teflon Packing Kevlar Packingl to Fit Mission Magnum MCM250 Baker SPD Mud Hog2.5 centrifugal pump
