BETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron Casting

BETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron Casting

    • BETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron Casting
    • BETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron Casting
    • BETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron Casting
    • BETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron Casting
    • BETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron Casting
  • BETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron Casting

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: MCM250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD25-35.00
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Material: Hard Iron, Chrome, Bronze, SS Production: CASTING
    Color: Painting Color Up On Request Test: Balance Test Approved

    BETTER could produce alternative spare parts for Mattco 250 and Harrisburg 250 centrifugal pump, all BETTER pumps are build using the superior quality components, and its parts are 100% & identical in all dimensions to the pump parts of Mattco, Harrisburg, we also supply for other popular brands, such as Mission Magnum & Supreme 2500, MCM250, Halco2500, Double Life250, Baker SPD mud hog 2.5, Cobra, Dragon Derrickk premium 250, TSC Highlight HCP..



    Equivalent to model:

    640202123    3X2X13

    640202222    4X3X13

    640202529    6X5X11

    640202628    6X5X14

    640202826    8X6X11

    640202925    8X6X14

    640203121    10x8x14



    We could produce and supply the equivalent spare parts as below. The given part no. is for confirmation.

    1   250 Pedestal                1-250-PED

    2   250 Shaft       7-250-416SS

    3   250 Outboard Bearing Housing           4C-250-BH

    4             250 Packing Gland          9-250-GPA

    5             250 Inboard Bearing      4B-250-BI

    6             250 Slinger Ring Water 23-250-SRW-U

    7             250 Inboard Bearing Cover         2B-250-BC

    8             250 Outboard Bearing   4A-250-BO

    9             250 Outboard Bearing Cover      -2A-250-BC

    10           250 Graphite Packing    8A-250-PMSG

    -              250 king Packing              8C-250-PMSK

    -              250 Teflon Packing          8D-250-PMSK

    -              250 Mechanical Seal       34A-250-MSI

    11           250 Gland Bolt Assembly             10-250-GABA-

    12           250 Shaft Sleeve, Ceramic            7A-250-SSC

    13           250 Stuffing Box F/Packing         11-250-SBPS-

    -              250 Stuffing Box F/Mech. Seal    11C-250-SBMSS

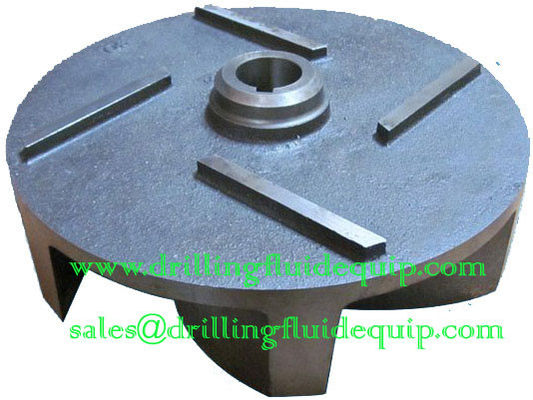

    14           250-2X3X13 Impeller    122523IXXX

    -              250-3X4X13 Impeller    122534IXXX

    -              250-4X5X14 Impeller    122545IXXX

    -              250-5X6X11 Impeller    122556IXXX

    -              250-5X6X14 Impeller    122564XXX

    -              250-5X6X11 Impeller    1225681XXX

    -              250-6X8X14 Impeller    122568IXXX

    15           250-2X3X13 Housing Assembly                142523HAS

    -              250-3X4X13 Housing Assembly                142534HAS

    -              250-4X5X14 Housing Assembly                N/A

    -              250-5X6X11 Housing Assembly                1425561HAS-11

    -              250-5X6X14 Housing Assembly                1425561HAS-14

    -              250-6X8X11 Housing Assembly                N/A

    -              250-6X8X14 Housing Assembly                142568HAS

    16           250 Housing Stud W/Nut             15-250-HSN

    17A        250 Fluid End Gasket Kit              31-250-FEGK

    17           250 Housing Gasket        13C-250-HGA

    18           250 Impeller Seal - Oring             12B250-ISOR

    19           250 Shaft Sleeve Seal - Oring      7B-250-SSOR

    20A        250 Oil Seal Kit 33-250-GSK

    20           250 Inboard Bearing Oil Seal      5B-250-OGSI

    21           250 Inboard Bearing Oil Seal      5B-250-SEXI

    22           250 Outboard Bearing Oil Seal   5A-250-OGSO

    23A        250 Power End Gasket Kit           32-250-PEGK

    23           250 Inboard Bearing Cover Gasket          3A-250-BCG

    24           250 Outbd. Bearing Hsg. Seal-Oring        4D-250-BHOR

    25           250 Outbd. Brg. Cover Seal-Oring             3B-250-BCOR

    26           250 Bearing Lock Nut Kit             4E-250-BBLNA



    17648, 17690, 17649, 5327-034, 5530-0032, 17658-002, 17657-002, 17659, 17665-001,17666-002,17691,17670,17671, 17672, 17692, 5550-005, 13669, 5550-006, 50913-001, 17673, 5530-254, 5530-246, 5A-250-OGSO, 50912-001, 17689, 1769-002, 17680-002, 17681-002, 17682-002, 17683-002, 17684-002, 17685-002, 17650-XX-112, 17651-XX-112, 17652-XX-112, 17653-XX-112, 17654-XX-112, 17655-XX-112, 17656-XX-112

    Casing,3×2×13 19203-01-30A H19203-01-30A 641101753 TP-P25D233H 1769-002 142523HAS P25D233H 052134000 H19203-01-30A
    Casing,4×3×13 19205-01-30A H19205-01-30A 641101902 TP-P25D343H 17680-002 142534HAS P25D343H 052134100 H19205-01-30A
    Casing,5×4×14 19222-01-30A H19222-01-30A 641102058 TP-P25D454H 17681-002 N/A P25D454H 052134200 H19222-01-30A
    Casing,6×5×11 19122-01-30A H19122-01-30A 641101456 TP-P25D454H 17682-002 142556HAS-11 P25D454H 052134300 H19122-01-30A
    Casing, 6×5×14 19123-01-30A H19123-01-30A 641101605 TP-P25D564H 17683-002 142556HAS-14 P25D564H 052134400 H19123-01-30A
    Casing, 8×6×11 19763-01-30A H19763-01-30A 641102157 TP-P25D681H 17684-002 N/A P25D681H 052134500 H19763-01-30A
    Casing,8×6×14 19117-01-30A H19117-01-30A 641101308 TP-P25D684H 17685-002 142568HAS P25D684H 052134600 H19117-01-30A
    Casing,10×8×14 20937-01-30A H20937-01-30A 641102322 - - - - - -
    Impeller,3×2×13 19204-XX-30 H19204-XX-30 641215603 TP-P25D233MRxxx 17650-XX-112 1225231XX P25D233MRxxx - -
    Impeller,4×3×13 19206-XX-30 h19206-XX-30 641217005 TP-P25D343MRxxx 17651-XX-112 1225341XX P25D343MRxxx - -
    Impeller,5×4×14 19224-XX-30 - 641217831 TP-P25D454MRxxx 17652-XX-112 1225451XX P25D454MRxxx - -
    Impeller,6×5×11 19121-XX-30 - 641211602 TP-P25D561MRxxx 17653-XX-112 1225561XX P25D561MRxxx - -
    Impeller, 6×5×14 19121-XX-30 - 641212105 TP-P25D564MRxxx 17654-XX-112 1225561XX P25D564MRxxx - -
    Impeller, 8×6×11 19121-XX-30 - 641211602 TP-P25D561MRxxx 17655-XX-112 1225661XX P25D561MRxxx - -
    Impeller,8×6×14 19116-XX-30 - 641209903 TP-P25D584MRxxx 17656-XX-112 1225681XX P25D584MRxxx - -
    Impeller,10×8×14 21867-XX-30 - 641221007 - - - - - -



    BETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron CastingBETTER MCM 250 Centrifugal Pump Open and Semi-Open Impeller Hard Iron Casting

    DISCLAIMER: NOV Mission Magnum & Supreme, MCM, Halco, Double Life, Baker SPD, Harrisburg, Cobra, Dragon, Derrickk are in no way affliated with BETTER Drilling Fluid Equipment Industrial Limited. The replacement parts offered are manufactured by or for BETTER, and the mentioned brand name & part no. is for confirmation.
