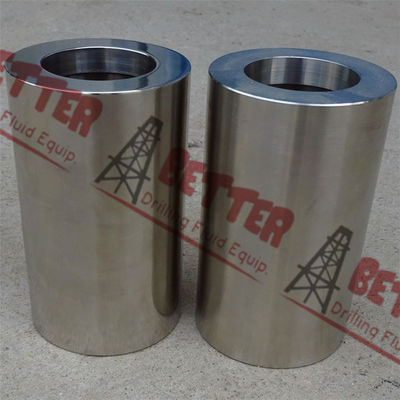

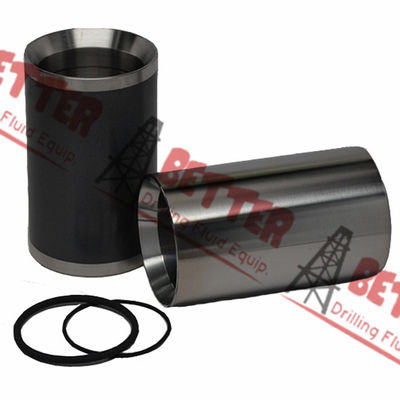

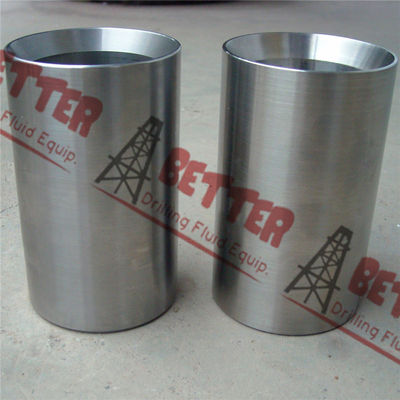

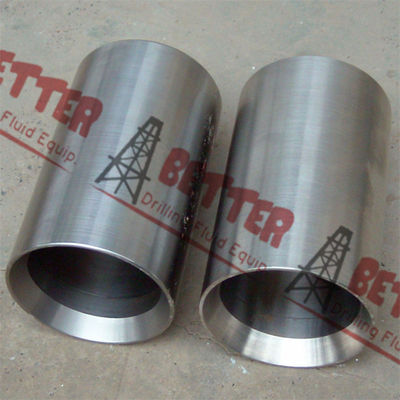

BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump

BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump

    • BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump
    • BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump
    • BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump
    • BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump
    • BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump
    • BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump
  • BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: Mission Magnum 2500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD320.00 PER SET
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Contact Now
    Detailed Product Description
    Theory: Centrifugal Pump Structure: Single-stage Pump
    Usage: Slurry Power: Electric
    Standard Or Nonstandard: Standard Fuel: Motor
    Pressure: Low Pressure Application: Sewage
    Material: 316ss,416ss,ceramic

    Sleeve, shaft, M.S. 20943-21 - 641102182 - - - - - -
    Sleeve, shaft, Pack 20613-21G-7A H20613-21G-7A 641102181 TP-P25SHSLVC 17666-002 11-250SBPG P25SHSLVC 052144200 H20613-21G-7A

    BETTE Shaft Sleeve 416SS 316SS Ceramic Coating Mission Magnum MCM250 SPD XBSY Centrifugal Pump

    BETTER could produce alternative spare parts for Baker Mud Hog 2.5 centrifugal pump, all BETTER pumps are build using the superior quality components, and its parts are 100% & identical in all dimensions, we also supply for other popular brands, such as Mission Magnum & Supreme 2500, MCM250, Halco2500, Double Life250, Mattco, Harrisburg, Cobra, Dragon Derrickk premium 250, TSC Highlight HCP.



    We could produce and supply the equivalent spare parts as below. The given part no. is for confirmation.

    Description         Part Number

    Frame (pedestal)             052136610

    Plug for breather port    WWWX00012

    Oil plug                WWWX00012

    Outboard bearing Labyrinth seal              WVIN00262

    Outboard bearing cover                052136910

    Outboard bearing cover bolt       WWG31D107

    Outboard bearing cover seal       WWB248P41

    Outboard bearing            WWESK7311

    Bearing lock washer       WV00W1100

    Bearing lock nut               WV00N1100

    Outboard bearing housing           052136810

    Outboard bearing housing adjusting bolt              WWG31H1H7

    Outboard bearing housing nut   WWJ31H800

    Outboard bearing housing seal WWB254H30

    Shaft      052133900

    Coupling end key             WWW00A004

    Inboard bearing               WWENT5313

    Inboard bearing cover   052136710

    Inboard bearing cover gasket     052137400

    Inboard bearing cover bolt          WWG31H1H7

    Inboard bearing cover Labyrinth seal     WVINM0026

    Inboard oil seal                 WWW003002

    Inboard exclusion seal   WWW003001

    Jack bolts             WWG31S28F

    Casing 3 x 2 x 13 repair kit          052134000

    Casing 4 x 3 x 13 repair kit          052134100

    Casing 5 x 4 x 14 repair kit          052134200

    Casing 6 x 5 x 11 repair kit          052134300

    Casing 6 x 5 x 14 repair kit          052134400

    Casing 8 x 6 x 11 repair kit          052134500

    Casing 8 x 6 x 14 repair kit          052134600

    Wear pad 4 x 3 x 13 repair kit    052134700

    Wear pad 5 x 4 x 14 repair kit    052134800

    Wear pad 6 x 5 x 11 repair kit    052134900

    Wear pad 6 x 5 x 14 repair kit    052135000

    Wear pad 8 x 6 x 11 repair kit    052135100

    Wear pad 8 x 6 x 14 repair kit    052135200

    Casing gasket     052137100

    Casing stud         WWHS1S3HA

    Casing stud nut                 WWJ11S800

    *Impeller, 3 x 2 x 13, 2.5 centrifugal pump           05213571x

    *Impeller, 4 x 3 x 13, 2.5 centrifugal pump           05213581x

    *Impeller, 5 x 4 x 14, 2.5 centrifugal pump           05213591x

    *Impeller, 6 x 5/8 x 6 x 11, 2.5 centrifugal pump               05213601x

    *Impeller, 6 x 5 x 14, 2.5 centrifugal pump           05213621x

    *Impeller, 8 x 6 x 14, 2.5 centrifugal pump           05213631x

    Impeller seal     WWB032V35

    Shaft sleeve kit 052137000

    Ceramic coated shaft sleeve kit 052144200

    Mechanical seal kit tungsten/tungsten   WVBUF9000

    Mechanical seal kit silicon/tungsten        WVBUF5000

    King packing      052153400

    5 ring packing with lantern ring                052153500

    Stuffing box cover for mechanical seal    052136410

    Stuffing box cover for mechanical seal aluminum bronze               052136430

    Stuffing box cover for packed      052144910

    Gland assembly bolt       052137280

    Stuffing box cover bolt   WWG31H187

    Packing, 3 ring for mechanical seal           052141500

    Gland set             052136500

    Shaft sleeve seal               WWB225V40

    Fluid end gasket kit        052145400

    Power end gasket kit      052145500

    Labyrinth seal replacement kit 052145600

    Lock nut replacement kit              052145700

    Oil seal kit           052149000

    Deflector              WWW003003

    Impeller bolt** WWGL1S203

    Impeller bolt seal**        WWB018V35

    Rebuild kit          999881000

    DISCLAIMER: NOV Mission Magnum & Supreme, MCM, Halco, Double Life, Baker SPD, Harrisburg, Cobra, Dragon, Derrickk are in no way affliated with BETTER Drilling Fluid Equipment Industrial Limited. The replacement parts offered are manufactured by or for BETTER, and the mentioned brand name & part no. is for confirmation.



    Please contact our sales if you are interested in any of our products.
