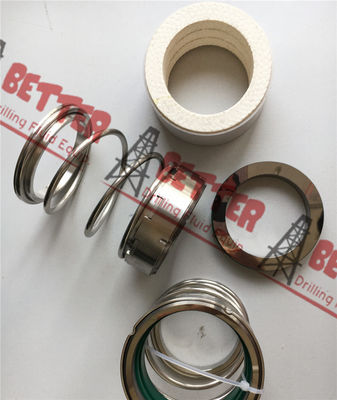

Mechanical seal kit tungsten/tungsten WVBUF9000

Mechanical seal kit tungsten/tungsten WVBUF9000

    • Mechanical seal kit tungsten/tungsten WVBUF9000
    • Mechanical seal kit tungsten/tungsten WVBUF9000
    • Mechanical seal kit tungsten/tungsten WVBUF9000
    • Mechanical seal kit tungsten/tungsten WVBUF9000
    • Mechanical seal kit tungsten/tungsten WVBUF9000
    • Mechanical seal kit tungsten/tungsten WVBUF9000
  • Mechanical seal kit tungsten/tungsten WVBUF9000

    Product Details:

    Place of Origin: China
    Brand Name: BETTER
    Certification: API 7K, 6A, 8C, ISO
    Model Number: Mission Magnum

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD250.00
    Packaging Details: Carton, Plywood Case
    Delivery Time: 7-10 days
    Payment Terms: T/T, West Union
    Supply Ability: Fast Delivery, Plenty in Stock
    Minimum Order Quantity: 1 PC
    Contact Now
    Detailed Product Description
    Material: Tungsten Face Backup Packing: Teflon
    Type: 2.5"

    ITME PART NO CATALOG NO DESCRIPTION
    5A 648414308 22451-1 Seal, Mechanical(Tungsten Carbide Faces)
    5A 648414340 22451-2 Seal, Mechanical(Ceramic Carbon Faces)
    5A 648414357 22451-3 Seal, Mechanical(Silicon to Tungsten Faces)
    5A 22451-9A 22451-9A Seal, Mechanical(Silicon Carbide Faces)
    5A 661007005 25014-04M-B Packing, Shaft, w/latern ring(Graphite)
    5A 661007008 25014-04M-BA Packing, Shaft, w/latern ring(King)
    5A 661007011 250147-04M-D Packing, Shaft, w/latern ring(Teflon)
    5A 661007006 25014-04M-C Packing, Shaft, w/latern ring(Kevlar)
    5A 648408607   Packing, Shaft-M.S. Backup(Graphite)
    5A 648408607   Ring, Latern

    250 series Centrifugal Pump Parts

    BETTER could provide a wide range of open type impeller and semi open impeller, casing, stuffing box, wear pad for all series and brands of heavy duty centrifugal pumps, we have improved the original design with hydraulic hole one impeller position, which have prolonged the impellers' life greatly.

    We have ductile iron, hard iron, high chrome iron material for option, if the quantity is ok, we accept to the customized impeller in bronze, stainless steel and other special material not popular used.

    All impellers are investment casted or resin-casted with pickling (acid washing) as our power-end parts, which are also available in cast steel in favor of ductile. All other sizes are resin-casted with pickling (acid washing) to ensure smooth surface finish. To ensure quality, we meticulously check threaded holes by fitting their bolts to ensure the threads are clean and clear. All casings are of course pressure tested and all impellers and dynamic balanced. Each casing is properly pressure tested prior to shipping.
    It is our standard to deliver all of our impellers in foam molded packing in boxes. If your company has any specific packaging requirements, from branding of castings to box labels, please let us know.

    CASING OEM#:

    Casing,3×2×13, H19203-01-30A , 641101753, P25D233H, 1769-002, 142523HAS, 052134000

    Casing,4×3×13, H19205-01-30A , 641101902, P25D343H, 17680-002, 142534HAS, 052134100

    Casing,5×4×14, H19222-01-30A , 641102058, 17681-002, P25D454H, 052134200

    Casing,6×5×11, H19122-01-30A , 641101456, 17682-002, 142556HAS-11, 052134300

    Casing, 6×5×14, H19123-01-30A, 641101605, 17683-002, 142556HAS-14, P25D564H, 052134400

    Casing, 8×6×11, H19763-01-30A, 641102157, 17684-002, P25D681H, 052134500

    Casing,8×6×14, H19117-01-30A , 641101308, 17685-002, 142568HAS, P25D684H, 052134600

    Casing,10×8×14, H20937-01-30A, 641102322

    Housing Gasket: P25HG, 10399-46-1, 17648, 13C-250-HGA, 720700, 052137100

    Housing Stud w/nut: P25HSN,17649/5327-034, 15-250-HSN, B16092121000048& 19052121000000, WWHS1S3HA & WWJ11S800, H2507-3 & H3932-61



    IMPELLER OEM#

    Impeller,3×2×13, H19204-XX-30, 641215603, 17650-XX-112, 1225231XX, P25D233MRxxx, 05213571X, H2521-90-30

    Impeller,4×3×13,H19206-XX-30, 641217005, 17651-XX-112 , 1225341XX, P25D343MRxxx, 05213581X,H2522-90-30

    Impeller,5×4×14, 19224-XX-30, 641217831, 17652-XX-112, 1225451XX, P25D454MRxxx,05213591X,H2525-AO-30

    Impeller,6×5×11, 19121-XX-30, 641211602, 17653-XX-112, 1225561XX, P25D561MRxxx,05213601X,H2524-70-30

    Impeller, 6×5×14, 19121-XX-30, 641212105, 17654-XX-112, 1225561XX, P25D564MRxxx,05213621, H2524-AO-30

    Impeller, 8×6×11, 19121-XX-30, 641211602, 17655-XX-112, 1225661XX, P25D561MRxxx,05213601X, H2524-70-30

    Impeller,8×6×14, 19116-XX-30, 641209903, 17656-XX-112, 1225681XX, P25D584MRxxx,05213631X, H2525-AO-30

    Impeller,10×8×14, 21867-XX-30, 641221007



    STUFFING BOX OEM#

    Stuffing box, mech.seal: 22223-01-30, 641116157, 17658-002, 11-250-SBPG, P25SB/MS, 052136410,721350

    Stuffing box, packed: 20614-01-30, 643365042, 17657-002, 11C-250-SBMSS, P25SB/PK, 052144910

    Bolt, stuffing box: 3861-117, 3861-117, 648401016, WWG31H187, H3861-117



    WEAR PAD OEM#

    Casing wear pad, 2501-37,2502-37,2503-37,2504-37,2505-37,2506-37,2507-37

    H2501-01-30A, H2502-01-30A, H2503-01-30A, H2504-01-30A,H2505-01-30A,H2506-01-30A,H2507-01-30A

    Mechanical seal kit tungsten/tungsten WVBUF9000

    Please don’t hesitate to contact our sales if you are interested in any of our products.
